Raster Image Printer

The file size of your output TIFF images can be reduced by adjusting the color reduction and compression options. Color reduction and Compression are controlled through the profile. The default color reduction and compression options selected for the system profiles provided with Raster Image Printer will often give a good balance between file size and quality.

Reducing the file size of your TIFF images is largely dependent upon the input documents you are converting. An issue you may encounter is balancing file size with image quality. If you require assistance reducing your file size, please contact PEERNET support.



Color Reduction

Step by Step Instructions

1.Launch the Raster Image Printer Dashboard.

LaunchDashboard-RAS



2.Select "Edit & Create Profiles" to open Profile Manager.

3.Select "Add a profile" to create a personal profile, or create a copy of one of our system profiles.

4.Name the profile, add a description, and click Save.

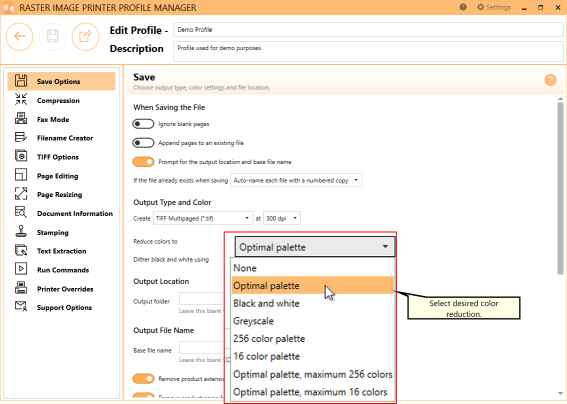

5.On the Save Options tab, under Output Type and Color, drop the box next to "Reduce colors to" and select your desired color reduction.

ReduceTIFFFileSizeColorReduction-RAS



Color Reduction refers to the number of colors that are saved in the output TIFF image. The default setting is reduce colors to optimal palette which means that Raster Image Printer will reduce each page down to the smallest number of colors required to represent that page. Therefore all colors present in the original file will be maintained in the output TIFF image.

Other color reduction options include:

Reduce to black and white

Reduce to greyscale

Reduce colors to 256 color palette

Reduce colors to 16 color palette

Reduce colors to Optimal color, maximum 256 colors

Reduce colors to Optimal color, maximum 16 colors

None

All of these other options will limit the number of colors saved in the output TIFF image to different degrees.

Reduce to black and white may work to reduce the file size of a text only document, but keep in mind that this color reduction option will only keep two colors - black and white - in the output TIFF image, which may interrupt anti-aliasing technique used to smooth the appearance of letters.

Reduce to greyscale will effectively reduce the file size of a document with colored images by converting the colored images to greyscale images. We would not recommend using reduce to black and white when converting documents with images. If you must use reduce to black and white, we do offer a few dithering methods that you can experiment with.

6.Click Save-Back, and close Profile Manager.



If you plan to use these settings regularly, you may wish to make this personal profile the default profile used by Raster Image Printer.



i.Select the printer you wish to edit and use the Profile drop box to select your desired default profile.

ii.Select "Manage Printers" to open Printer Management.

iii.Select the Save icon to save changes.

iv.Select the Home icon to return to the Dashboard.



7.Close the Dashboard. Now when you print your document to Raster Image Printer, the color reduction option you selected will be applied to the output TIFF image.



Compression

Step by Step Instructions

1.Launch the Raster Image Printer Dashboard.

LaunchDashboard-RAS



2.Select "Edit & Create Profiles" to open Profile Manager.

3.Select "Add a profile" to create a personal profile, or create a copy of one of our system profiles.

4.Name the profile, add a description, and click Save.

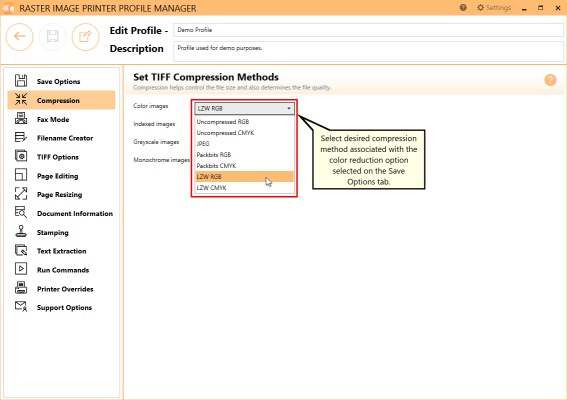

5.On the Compression tab, you can change the compression method used based on the color reduction option selected on the Save Options tab. Be sure that you are changing the correct compression field in relation to the color reduction option selected. If you are using the default color reduction option, reduce colors to optimal palette, then you should be working with the Color images compression field. Typically you will only need to change the compression method if you have been instructed to do so by a publisher or archiving software. For example, CCITT Group 4 Fax compression for monochrome images is a standard compression required by archiving systems.

ReduceTIFFFileSizeCompression-RAS



6.Click Save-Back, and close Profile Manager.



If you plan to use these settings regularly, you may wish to make this personal profile the default profile used by Raster Image Printer.



i.Select the printer you wish to edit and use the Profile drop box to select your desired default profile.

ii.Select "Manage Printers" to open Printer Management.

iii.Select the Save icon to save changes.

iv.Select the Home icon to return to the Dashboard.



7.Close the Dashboard. Now when you print your document to Raster Image Printer, the compression option you selected will be applied to the output TIFF image.
