The Printer Overrides Tab holds all settings related to controlling paper size and margins of the printer. For most applications, when the original file is printed, the paper size and margins are part of the information beings sent to TIFF Image Printer, so setting paper information on the Printer Override Tab is unnecessary. There are some instances where you may need to override the paper information, such as when printing oil well logs.

All settings on the Printer Overrides tab will override any selections that you have set within the application.

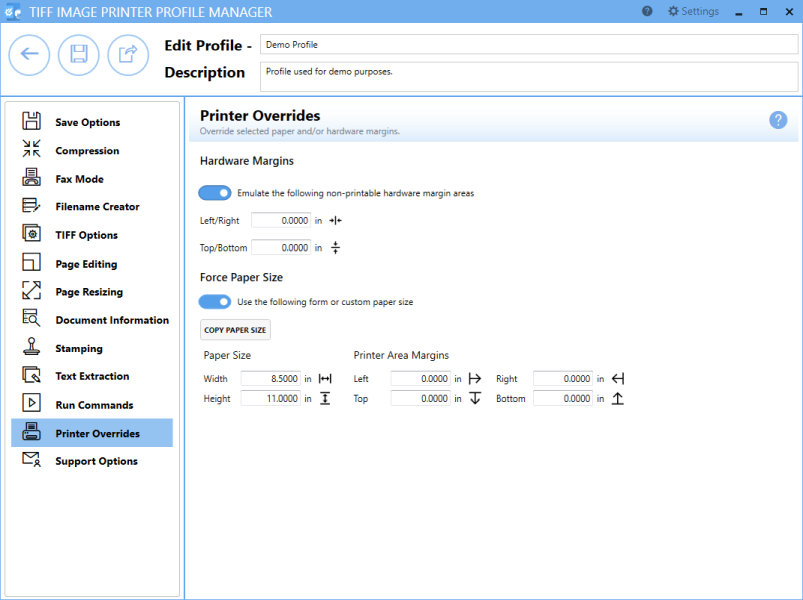

ProfileManagerPrinterOverridesTab



See Also: Print Well Logs as One Continuous Image

Hardware Margins

Enable emulate the following non-printable hardware margin area

By default this setting is disabled. Enabling this setting allows you to customize the size of the printer-supplied edge on your output file. Hardware margins cannot be large than 1.00in (2.54cm) on each side of the paper.

Left/Right - Enter the Left and Right hardware margins settings into the appropriate fields.

Top/Bottom - Enter in the Top and Bottom hardware margin settings into the appropriate fields.



Dimensions for Hardware Margins are entered based on a portrait oriented page. You can change the units by selecting Settings from the top right hand corner of the Profile Manager window, and toggling between inches (in) and centimeters (cm).

Force Paper Size

Enable use the following form or custom paper size

By default this setting is disabled. Enabling this setting means TIFF Image Printer will use custom paper size for the output file. Note that this selection overrides any other paper size selection that you have set on the application.

Paper Size

Enter the desired Width and Height for the custom paper size.

Use the Copy Paper Size button to copy the dimensions from our list of standard paper sizes.

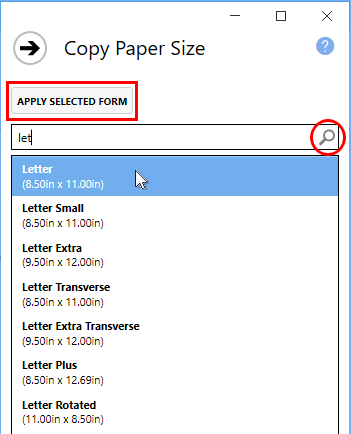

Select Copy Paper Size to open the Copy Paper Size flyout.

Use the filter field to search and refine the list.

Click Apply Selected Form to copy selected paper size directly to Width and Height fields.



ProfileManagerPrinterOverridesTabCopyPaperSize



Dimensions for Paper Size are entered based on a portrait oriented page. You can change the units by selecting Settings from the top right hand corner of the Profile Manager window, and toggling between inches (in) and centimeters (cm).

Printer Area Margins

Enter the desired Left, Right, Top, and Bottom printer area margin settings for the custom paper size.

The combined Left and Right printer area margins must be less than the Width of the custom paper. The combined Top and Bottom printer area margins must be less than the Height of the custom paper.

Dimensions for Printer Area Margins are entered based on a portrait oriented page. You can change the units by selecting Settings from the top right hand corner of the Profile Manager window, and toggling between inches (in) and centimeters (cm).
