PDF Creator Plus 8

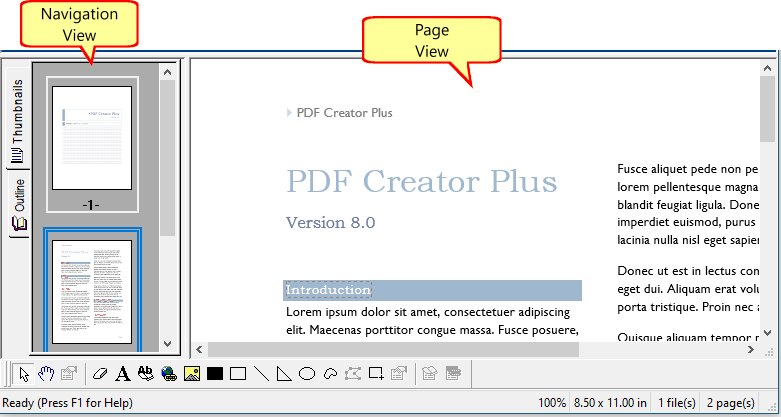

The PDF Creator Plus design window is split into two panes.

The left pane, or Navigation View, consists of a Thumbnails tab that displays a small preview, or thumbnail, of each page in the project and an Outline tab that displays any headings and bookmarks contained in the project.

The right pane, or Page View, displays the contents of the current page. It is used to annotate the currently selected page using the annotation tools.

 Productivity Tips - Changing Views

You can hide the Navigation View by clicking View – One Page in the application menu, or the Page View by clicking one of View – Thumbnails or View - Outline in the application menu.

You can return to the dual display of Page View and the Navigation View by clicking View – Page and Thumbnails or View – Page and Outline in the application menu.

These options are also available on the Standard toolbar. By default, both the Page View and the Navigation View are visible.

Changing View Size

You can change the size of either of the Navigation View or Page View by moving the gray divider bar in the middle to the left or right. Position the mouse over the gray bar between the two panes - when the cursor changes as shown below, click and hold the left mouse button to drag the divider bar to the left or right.

Navigation View

The Navigation View is made up of two pages of information – Thumbnails and Outline. Each page is accessible by clicking the respective tab in the upper left corner of the pane.

Thumbnails Tab

The Thumbnails tab contains a thumbnail of each page in the project. You can use this view to easily move between the pages within a project simply by clicking on the thumbnail in the view. It is also used to arrange the pages within the project. The pages may be reordered, deleted, copied or rotated. In addition, new pages may be inserted or imported into the project.



















The Outline Tab

The Outline tab displays the headings and bookmarks in the project. Headings and bookmarks will normally be created using the PEERNET Save as PDF command from within Microsoft Word, but they can also be created manually using the Bookmark and the Hyperlink annotation tools.

























Page View

The Page View is used to annotate the currently selected page using the annotation tools available in the annotation toolbar.

Available annotation tools include a text object, a bookmark object, a hyperlink object and various other shape objects such as lines, ellipses, rectangles and polygons.See Annotating Pages for more information on adding annotations to your pages.
