Add a Custom Paper Form
The following steps outline how to create a custom paper size or form and use it in your application. You will need to close your application before doing these steps.
Note: You may require administrative permissions to add custom paper sizes.
1.Close any open applications.

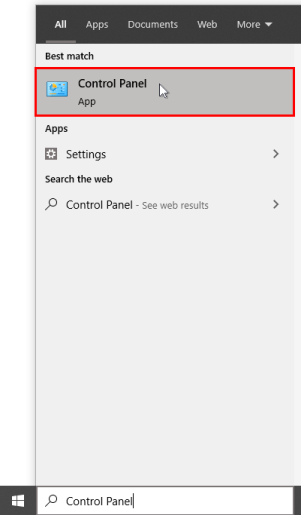

2.Go to Start and search for "Control Panel" to open Control Panel applet.

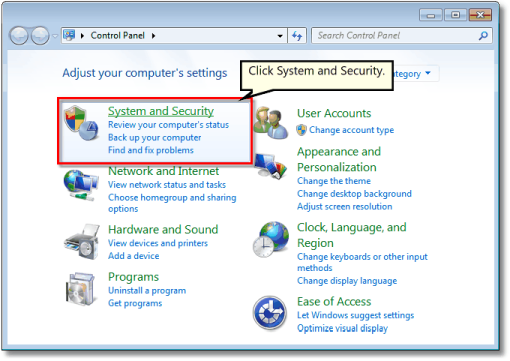

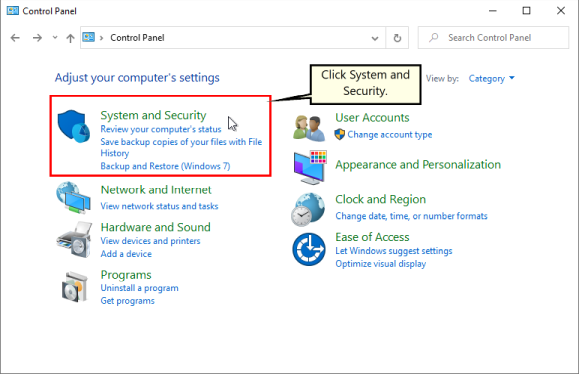

3.Click System and Security.

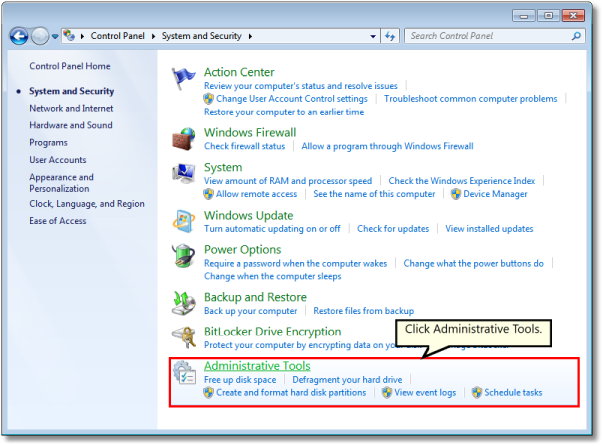

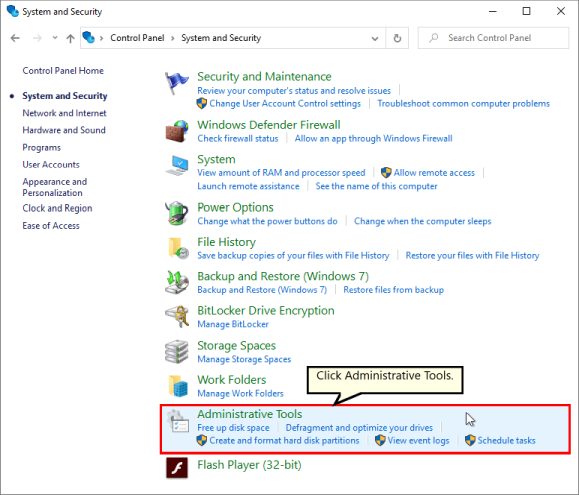

4.Click Administrative Tools.

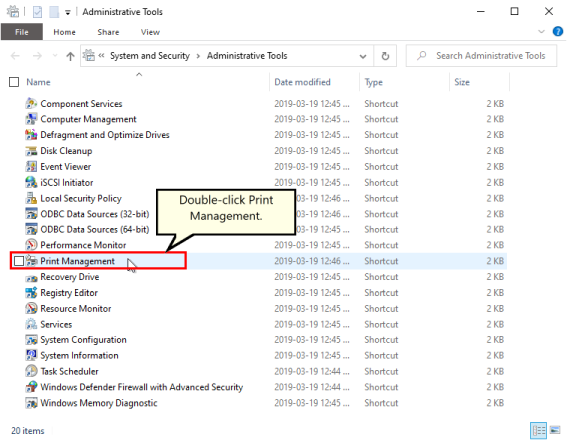

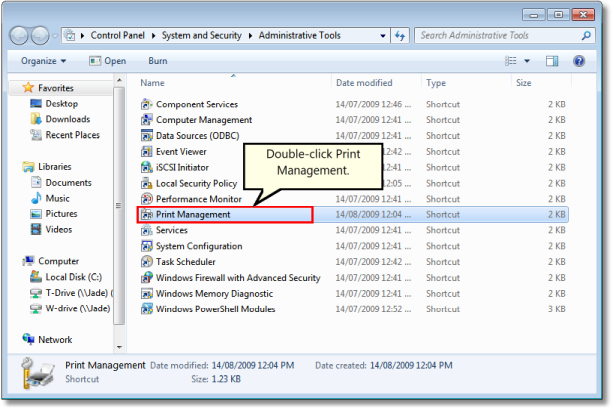

5.Double-click Printer Management.
6.Select Print Servers and then select the name of your computer (ie. Server1).

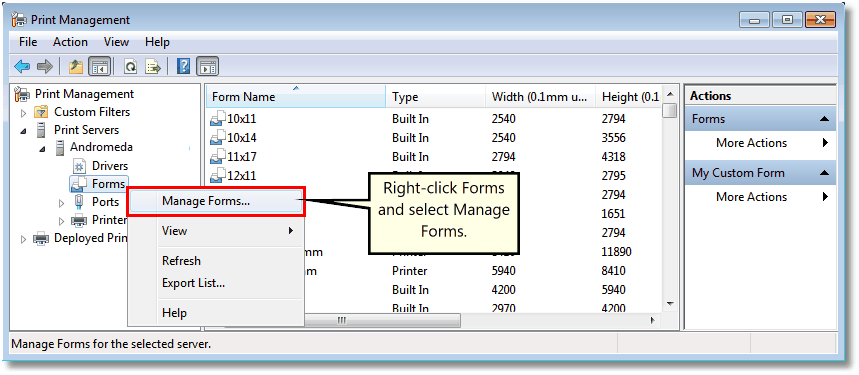

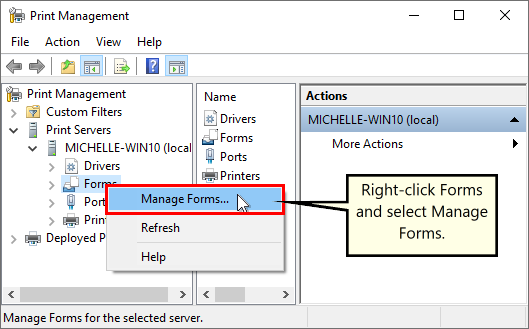

7.Right-click Forms and select Manage Forms...

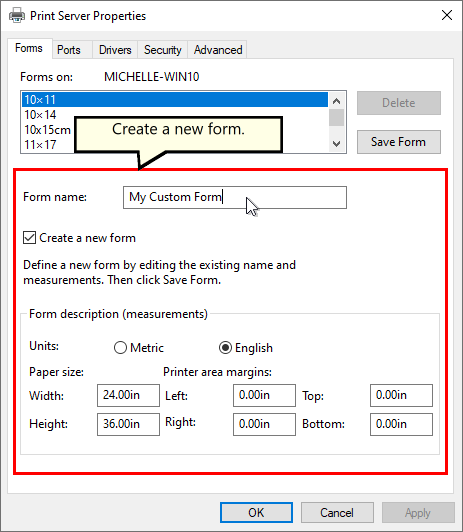

8.Check "Create a new form".
a.Enter a descriptive name in the "Form name:" field (e.g. "30 x 42" or "36 x 48")
b.Set the measurement units of "Metric" or "English"
c.Enter the desired Width and Height for your paper size. NOTE: Always make the Width less than the Height (e.g. Width 30, Height 42) as you can always choose Landscape orientation later.
9.Click Save Form, and then click OK to close the window.

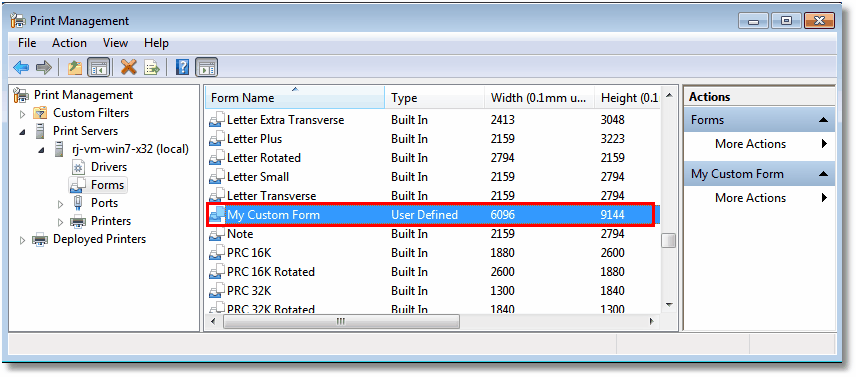

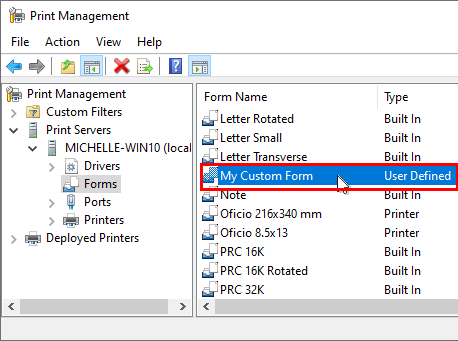

10.You can now use your new computer paper size in your application, or as a paper size on PDF Image Printer's Profile Manager Printer Overrides tab.

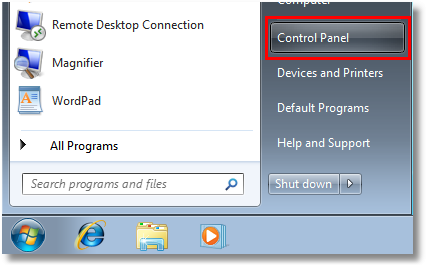

2.Go to Start - Control Panel to open Control Panel applet.
